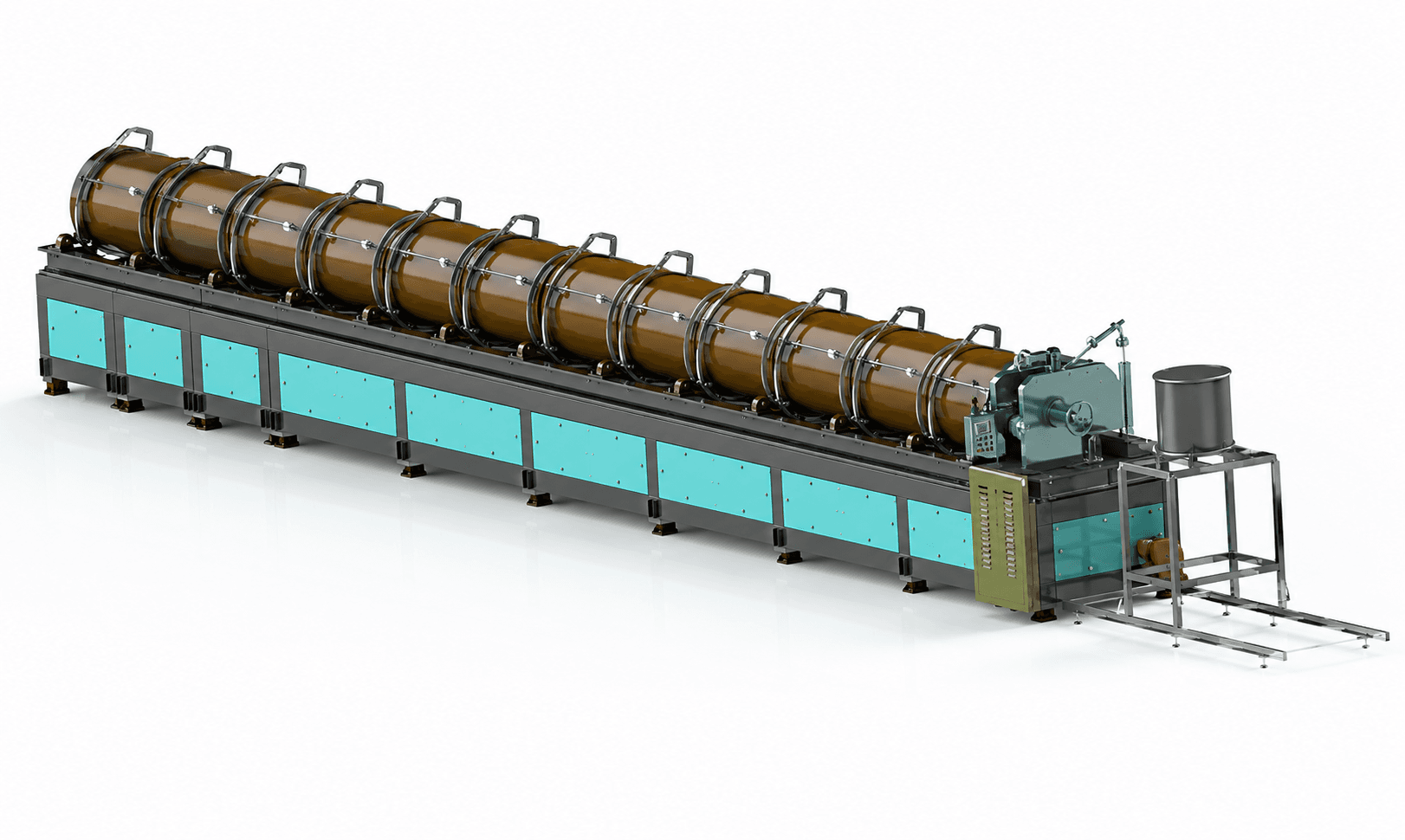

Centrifugal Casting Pole Machine
The main technology involved in this machine is the centrifugal casting process, produced using state-of-the-art technologies.
Built on a heavy tubular structure to compensate for vibrations and rotational loads. The machine frame can be dismantled and reassembled depending on the length of pole being produced.
Pressure gauges and temperature gauges are provided to control the pressure and temperature of the coolant, with a see-through gauge at the bottom to monitor oil levels in the base tank.
Cycle Time: 30 min to 1 hrApprox. Dimensions: 13m x 1.3m x 1.6mRotation: Up to 1000 rpmHeating: Up to 90°C
Technical Specification
Cycle Time30 min to 1 hr
Approx. Dimensions13m x 1.3m x 1.6m
RotationUp to 1000 rpm
HeatingUp to 90°C
Detachable Length6m to 12m
ExpandabilityUp to 14m
OperationManual or auto cycle
Control SystemPLC controlled
Workers RequiredAbout 3 members
Lead TimeReady in 3 months
Power Requirement45 KW
InsulationThermal insulated
Accessories

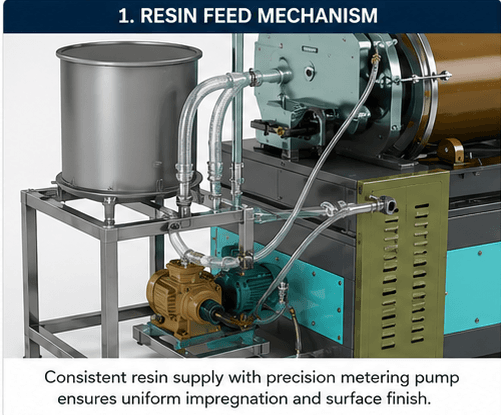

Resin Feed Mechanism

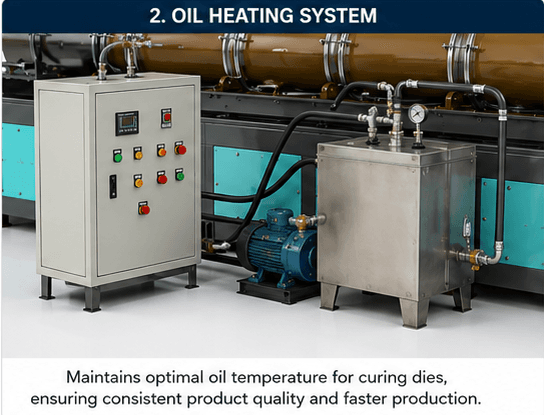

Oil Heating System

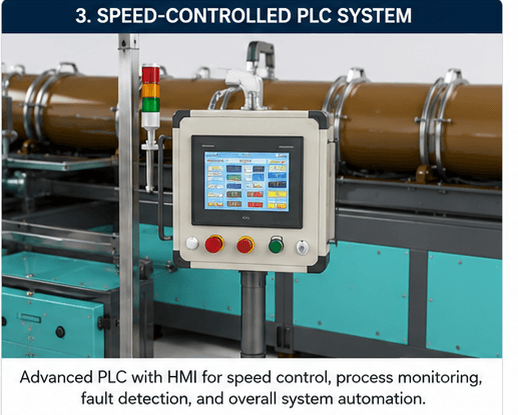

Speed-Controlled PLC System

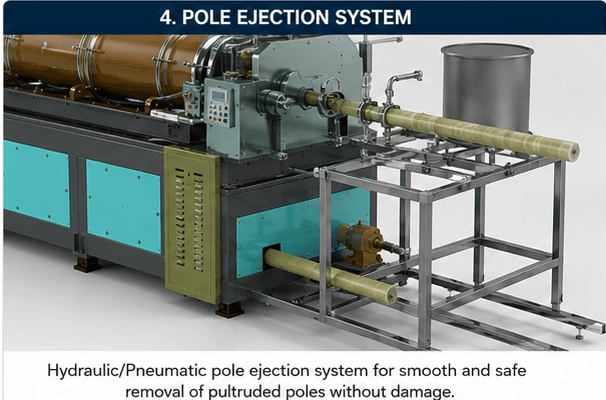

Pole Ejection System
How it works
- 1.Machine is constructed using a structural frame with vibration dampers and casting bearing holders — rotors are well balanced to grams for smooth high-speed operation.
- 2.Maintenance is kept simple, with the construction designed to be user-friendly for day-to-day upkeep.
